vLLM Service Profiler User Guide¶

Overview¶

vLLM Service Profiler monitors and collects performance data of the internal execution process of the vLLM-ascend inference service framework. It helps users quickly identify performance bottlenecks by tracing the execution flow. Specifically, it captures critical timing information (start/end timestamps), identifies key functions or iterations, records critical events, and captures diverse types of information throughout the inference pipeline.

vLLM Service Profiler is used for performance profiling analysis when deploying vLLM-ascend inference services. It covers the end-to-end workflow, from preparation, data collection, data parsing, to result visualization.

Basic Concepts¶

Profile data collection: records critical time points and events in serving scenarios through event tracking to generate profile data.
Event tracking/Symbol: specifies a target for profile data collection. This is defined by an executable function in the vLLM or vLLM-ascend source code.
Domain: specifies functional categories for profile data collection, such as Request, KVCache, and ModelExecute.
Symbol configuration: configuration file, which defines the functions/methods to be collected and their attributes.

Supported Products¶

[!NOTE]

For details about Ascend product models, see Ascend Product Models.

Product Type	Supported (Yes/No)
Atlas A3 training products and Atlas A3 inference products	Yes
Atlas A2 training products and Atlas A2 inference products	Yes
Atlas 200I/500 A2 inference products	Yes
Atlas inference products	Yes
Atlas training products	No

Before You Start¶

Environment Setup¶

In the Ascend environment, install the matching CANN Toolkit and ops operator packages, and configure CANN environment variables. For details, see CANN Installation Guide.
Install vLLM and vLLM-Ascend. Verify that vLLM-ascend can run properly. For details, see vLLM-Ascend installation.
Upgrade msServiceProfiler. Build the .run file from the source code and upgrade the tool. For details, see the section Upgrade in msServiceProfiler Installation Guide.

Constraints¶

Version compatibility: Ensure that vLLM-Ascend, CANN, and profiler versions meet the requirements in the Appendix.
Resource usage: The data collection process may consume significant memory. It is advised to adjust the collection frequency as required.
Function restrictions: Some advanced features may require specific vLLM-Ascend versions.

Quick Start¶

1. Preparing for Data Collection

Before starting the service, set the following environment variables:

SERVICE_PROF_CONFIG_PATH: specifies the path to the performance analysis configuration file.
PROFILING_SYMBOLS_PATH: specifies the path to the symbol configuration file.

cd ${path_to_store_profiling_files}
export SERVICE_PROF_CONFIG_PATH=ms_service_profiler_config.json
export PROFILING_SYMBOLS_PATH=service_profiling_symbols.yaml

# Start the vLLM service.
vllm serve Qwen/Qwen2.5-0.5B-Instruct &

ms_service_profiler_config.json indicates the collection configuration file. If the file does not exist, a default configuration is automatically generated. For custom configurations, see [Collection Configuration User Guide] (#collection-configuration-user-guide).

service_profiling_symbols.yaml is the instrumentation configuration file. If you do not set the PROFILING_SYMBOLS_PATH environment variable, the default configuration file is used. If the file does not exist at the specified path, the system generates a default configuration file at that location for subsequent modification. For custom configurations, see [Symbol Configuration User Guide] (#Symbol-configuration-user-guide).

2. Starting Data Collection

Change the enable field in ms_service_profiler_config.json from 0 to 1 to enable performance data collection. You can run the following sed command:

sed -i 's/"enable":\s*0/"enable": 1/' ./ms_service_profiler_config.json

3. Sending Requests

Select a request sending method based on the actual profiling requirements.

curl http://localhost:8000/v1/completions \
    -H "Content-Type: application/json"  \
    -d '{
         "model": "Qwen/Qwen2.5-0.5B-Instruct",
        "prompt": "Beijing is a",
        "max_tokens": 5,
        "temperature": 0
}' | python3 -m json.tool

4. Parsing Data

# xxxx-xxxx is the directory automatically created by the profiler based on the vLLM launch time.
cd /root/.ms_server_profiler/xxxx-xxxx

# Parse data.
msserviceprofiler parse --input-path=./ --output-path output

5. Viewing Data

After the parsing is complete, a profile data file is generated in the directory specified by --output-path. For details, see Output File Description.

Symbol Configuration User Guide¶

Functions¶

The symbol configuration file defines the functions/methods to be monitored, and supports flexible configuration and custom attribute collection.

Precautions¶

Built-in/Customized Symbol Configuration File¶

The symbol configuration file has been built in vLLM-ascend and the tool.

Default loading path: ~/.config/vllm_ascend/service_profiling_symbols.MAJOR.MINOR.PATCH.yaml (applicable to the vLLM-ascend framework and the file name varies with the installed vllm version)
Backup loading path: *tool installation path*/ms_service_profiler/patcher/vllm/config/service_profiling_symbols.yaml

To customize profiling symbols, you are advised to set the environment variable PROFILING_SYMBOLS_PATH and copy a symbol configuration file to the working directory for modification.

Symbol Configuration File Update¶

If a profiling symbol is updated, restart the vLLM service to load the updated configuration file.

Configuration Fields¶

Field	Description	Example
symbol	Python import path + attribute chain	`"vllm.v1.core.kv_cache_manager:KVCacheManager.free"`
handler	Handler function	`timer` or `pkg.mod:func` (customized)
domain	Domain ID	`"KVCache"` and `"ModelExecute"`
name	Event name	`"EngineCoreExecute"`
min_version	Earliest compatible version	`"0.9.1"`
max_version	Latest compatible version	`"0.11.0"`
attributes	Custom attribute collection	Only the `timer` handler is supported. For details, see the following custom attribute collection mechanism.

Configuration Example¶

Example 1: Customizing a handler function

- symbol: vllm.v1.core.kv_cache_manager:KVCacheManager.free
  handler: ms_service_profiler.patcher.config.custom_handler_example.kvcache_manager_free_example_handler
  domain: Example
  name: example_custom

Example 2: Default timer

- symbol: vllm.v1.engine.core:EngineCore.execute_model
  domain: ModelExecute
  name: EngineCoreExecute

Example 3: Version constraint

- symbol: vllm.v1.executor.abstract:Executor.execute_model
  min_version: "0.9.1"
  # If no handler is specified, the default timer is used.

Custom property collection mechanism¶

The attributes field supports flexible collection of custom attributes and allows multiple operations and conversions on function parameters and return values.

Basic Syntax¶

To access parameters: Use the parameter name, for example, request_id.
To access return values: Use the return keyword.
To access attributes: Use the attr operator, for example, obj | attr name.
For method calling: Call built-in functions such as len(), str(), int(), and float().
For pipe operation: Use | to connect multiple operations. Expressions are evaluated from left to right, with the output of each operator serving as the input to the next.

Configuration Example¶

- symbol: vllm_ascend.worker.model_runner_v1:NPUModelRunner.execute_model
  name: ModelRunnerExecuteModel
  domain: ModelExecute
  attributes:
  - name: device
    expr: args[0] | attr device | str
  - name: dp
    expr: args[0] | attr dp_rank | str
  - name: batch_size
    expr: args[0] | attr input_batch | attr _req_ids | len

Expression Description¶

len(input_ids): obtains the length of the input_ids parameter.
len(return) | str: obtains the length of the return value and converts it to a string (equivalent to str(len(return))).
return[0] | attr input_ids | len: obtains the length of the input_ids attribute of the first element in the return value.

Advanced Examples¶

attributes:
  # Obtains the tensor shape
  - name: tensor_shape
    expr: input_tensor | attr shape | str

  # Obtaining a specific value from a dictionary
  - name: batch_size
    expr: kwargs['batch_size']

  # Condition expression (custom processing function required)
  - name: is_training_mode
    expr: training | bool

  # Complex data processing
  - name: processed_data_len
    expr: data | attr items | len | str

Customize handler functions¶

When the handler field specifies a custom handler function, the function must meet the following signature requirements:

def custom_handler(original_func, this, *args, **kwargs):
    """
    Customize handler functions

    Args:
        original_func: original function object
        this: calling object (for method calling)
        *args: position parameter
        **kwargs: keyword arguments

    Returns:
        Handling result
    """
    # Custom handling logic
    pass

[!NOTE]

If the custom handler function fails to be imported, the system automatically rolls back to the default timer mode.

Output Description¶

The custom collection function or method can be displayed on the chrome_tracing.json timeline. The following is an example:

Symbol configuration file:

- symbol: vllm.entrypoints.openai.serving_chat:OpenAIServingChat.create_chat_completion
  name: OpenAIServingChat.create_chat_completion
  domain: Server

- symbol: vllm.entrypoints.openai.serving_chat:EngineCoreProc._process_engine_step
  name: EngineCoreProc._process_engine_step
  domain: Engine

- symbol: vllm.entrypoints.openai.serving_chat:EngineCoreProc.step
  name: EngineCoreProc.step
  domain: Engine

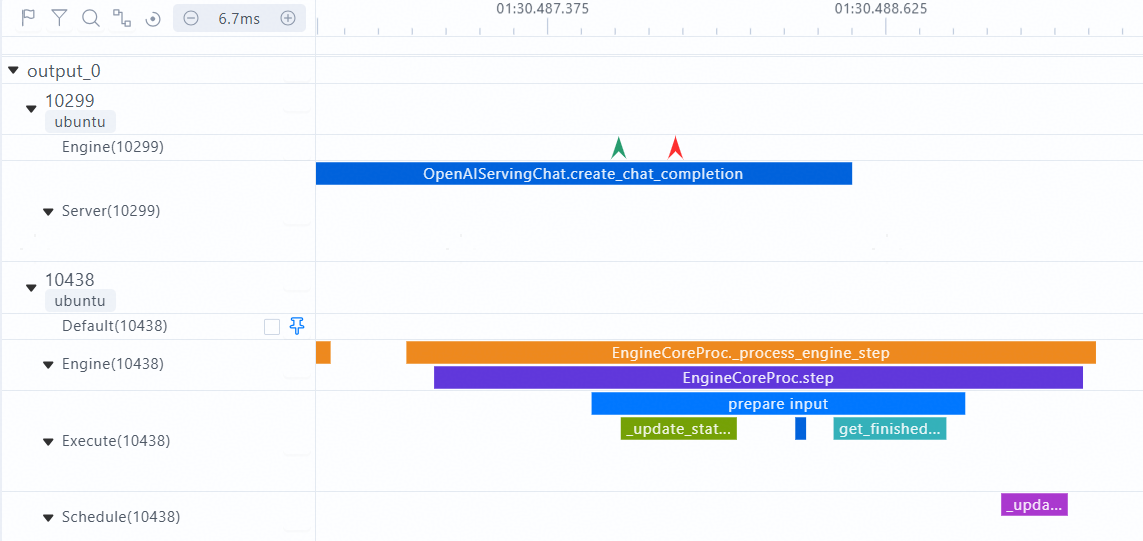

The following figure shows the timeline of chrome_tracing.json.

Output File Description¶

After parsing is complete, the deliverables listed in the following table are generated in the output directory.

Deliverable	Description
`chrome_tracing.json`	Records trace data of inference service requests. You can use different visualization tools to view the data. For details, see [Data Visualization] (./msserviceprofiler_serving_tuning_instruct.md# Data Visualization).
`profiler.db`	SQLite database file for generating visualized line charts. For details, see [profiler.db] (./msserviceprofiler_serving_tuning_instruct.md#profilerdb).
`request.csv`	Records detailed data of inference requests in a serving scenario. For details, see [request.csv] (./msserviceprofiler_serving_tuning_instruct.md#requestcsv).
`request_summary.csv`	Overall request statistics
`forward.csv`	Records detailed data of the forward execution process of an inference model in a serving scenario. For details, see forward.csv.
`kvcache.csv`	Records memory usage during inference. For details, see [kvcache.csv] (./msserviceprofiler_serving_tuning_instruct.md#kvcachecsv).
`batch.csv`	Records detailed data of inference batches in a serving scenario. For details, see [batch.csv] (./msserviceprofiler_serving_tuning_instruct.md#batchcsv).
`spec_decode.csv`	Records detailed data for each request in a speculative inference scenario. For details, see spec_decode.csv.
`batch_summary.csv`	Overall statistics metrics of batch scheduling
`service_summary.csv`	Overall statistics metrics in the service dimension
`span_info/`	Includes key span information such as `forward.csv` and `batchFrameworkProcessing.csv`. For details, see span_info Directory Description.

[!NOTE]

The output file is closely related to the collection of the domain field. For details, see [Mapping between domain fields and the parsing results] (./msserviceprofiler_serving_tuning_instruct.md# parsing result).

Appendix¶

vLLM versions and supported frameworks¶

CANN	vLLM-ascend V0	vLLM-ascend V1
8.3.RC1	/	v0.11.0.RC3
8.3.RC1	/	v0.11.0.RC2
8.3.RC1	/	v0.11.0.RC1
8.2.RC1	/	v0.11.0.RC0
8.2.RC1	/	v0.10.2.RC1
8.2.RC1	/	v0.10.1.RC1
8.2.RC1	/	v0.10.0.RC1
8.2.RC1	/	v0.9.2.RC1
8.2.RC1	v0.9.1	v0.9.1
8.1.RC1	v0.8.5.RC1	/
8.1.RC1	v0.8.4	/
8.0.RC3	v0.6.3	/

Profiling Configuration Usage Guide¶

For details about the profiling configuration, see the instructions for creating configuration files and the clarifications [Data Collection] (./msserviceprofiler_serving_tuning_instruct.md# Data Collection).

Note:

When acl_task_time is set to 1, vLLM Service Profiler does not support the configuration of the VLLM_TORCH_PROFILER_DIR environment variable of the native vLLM Torch Profiler for profile data collection.

When configuring the Torch Profiler, set enable to 0 (disabling profiling) first. After the vLLM-ascend inference service framework starts, set enable to 1 (enabling profiling). To avoid collecting too much profile data, you can disable profiling after the corresponding data is collected. If the initial value of enable is 1, a large amount of framework data is collected, which can easily generate trace files of several gigabytes.
