Precision Comparison in MindSpore

Overview

msProbe is mainly used in the following scenarios:

• Intra-MindSpore comparison
• When the same network model is executed in two different versions of the MindSpore static graph environment using identical training data input, the resulting API dump data is automatically compared in full mode. This allows for quick localization of precision issues between the two versions.
• When the same network model is executed in two different versions of the MindSpore static graph environment using identical training data input, the resulting kernel dump data is automatically compared in full mode. This allows for quick localization of precision issues between the two versions.
• When the same network model is executed in two different versions of the MindSpore dynamic graph environment using identical training data input, the resulting cell dump data is automatically compared in full mode. This allows for quick localization of precision issues between the two versions.
• Cross-framework comparison between MindSpore and PyTorch
• The same network model is used across environments, with API dump data collected from both MindSpore dynamic graph and PyTorch. Using PyTorch data as the benchmark, the tool performs automatic comparison to enable cross-framework precision evaluation.
• The same network model is used across environments, with cell dump data collected from both MindSpore dynamic graph and PyTorch. You can specify the cell list to be compared and use the PyTorch data as the benchmark for automatic comparison, achieving cross-framework precision comparison.
• The same network model is used across environments, with API or module dump data collected from both MindSpore dynamic graph and PyTorch. You can specify the API or module data to be compared and use the PyTorch data as the benchmark for automatic comparison, achieving cross-framework precision comparison.
• The same network model is used across environments, with API or module dump data collected from both MindSpore dynamic graph and PyTorch. You can specify the model layer to be compared and use the PyTorch data as the benchmark for automatic comparison, achieving cross-framework precision comparison.

Preparations

Install msProbe by referring to msProbe Installation Guide.

Model Precision Comparison

Function

Use the command line tool to compare precision data and output the comparison result.

Precautions

Syntax

msprobe compare -tp <target_path> -gp <golden_path> [options]

Parameters

Parameter	Description	Mandatory (Yes/No)
-tp or --target_path	dump.json path in the NPU environment (single-rank scenario) or dump directory (multi-rank scenario). The value is a string.	Yes
-gp or --golden_path	dump.json path in the CPU, GPU, or NPU environment (single-rank scenario) or dump directory (multi-rank scenario). The value is a string.	Yes
-o or --output_path	Directory for storing the comparison result file. By default, an output directory is created in the current directory. The value is a string. The file name is automatically generated based on the timestamp. The format includes compare_result_{timestamp}.xlsx and compare_result_{rank_id}_{step_id}_{timestamp}.xlsx (see [Full Kernel Comparison Across Different Versions] (#full_kernel_comparison_across_different_versions)). Note: Files with the same name as the result file in the output directory will be deleted and overwritten.	No
-fm or --fuzzy_match	Fuzzy matching. After this function is enabled, APIs at the same level on the network with the same name but different call times can be matched and compared. This function can be enabled by directly configuring this parameter. By default, this parameter is not configured, indicating that the function is disabled.	No
-am or --api_mapping	Cross-framework comparison. If this parameter is configured, the cross-framework API comparison function is enabled. You can specify a custom mapping file in .yaml format. If no mapping file is specified, the comparison is performed based on the default mapping defined by msProbe. For details about the format of the custom mapping file, see API Mapping. This parameter needs to be configured only in the cross-framework API comparison scenario.	No
-cm or --cell_mapping	Cross-framework comparison. If this parameter is configured, the cross-framework cell comparison function is enabled. You can specify a custom mapping file in .yaml format. If no mapping file is specified, the comparison is performed based on the default mapping defined by msProbe. For details about the format of the custom mapping file, see Cell Mapping. This parameter needs to be configured only in the cross-framework cell comparison scenario.	No
-dm or --data_mapping	Intra-framework or cross-framework comparison. A mapping file can be used to specify the mapping between two parameters in L0, L1, or mix collection scenarios. When configuring this parameter, you need to specify a custom mapping file in .yaml format. For details about the format of the custom mapping file, see Data Mapping.	No
-lm or --layer_mapping	Cross-framework comparison. If this parameter is configured, cross-framework layer comparison is enabled. After the layers in the model code are specified, the corresponding modules or APIs can be identified. You need to specify a custom mapping file in .yaml format. For details about the format of the custom mapping file, see Layer Mapping. This parameter needs to be configured only in the cross-framework layer comparison scenario.	No
-da or --diff_analyze	Automatically identifies the first different node on the network and supports dump data such as MD5 and statistics. Single-rank and multi-rank scenarios are supported. This function can be enabled by directly configuring this parameter. By default, this parameter is not configured, indicating that the function is disabled.	No
--rank	Rank ID for comparison, which is used only for kernel comparison. The value is of the int type. The dump files in the target_path and golden_path directories must contain the corresponding rank data. The default value is empty, indicating that all ranks are compared. You can configure one or more ranks. Use commas (,) to separate multiple rank IDs, for example, 1,2,3.	No
--step	Step ID for comparison, which is used only for kernel comparison. The value is of the int type. The dump files in the target_path and golden_path directories must contain the corresponding step data. The default value is empty, indicating that all steps are compared. You can configure one or more steps. Use commas (,) to separate multiple step IDs, for example, 1,2,3.	No
-tensor_log or --is_print_compare_log	Whether to enable log printing for a single module or API. Only the tensor data dumped by msProbe is supported. This function can be enabled by directly configuring this parameter. By default, this parameter is not configured, indicating that the function is disabled.	No

If no mapping is specified in dynamic graph mode, the comparison defaults to intra-framework mode, requiring the cell or API names in both the comparison and benchmark data to match.

Examples

Full API Comparison Across Different Versions

1. Refer to Precision Data Collection in MindSpore to collect MindSpore static graph precision data and obtain the API dump data of different framework versions.

2. Run the following example command to perform the comparison.

Single-rank scenario:

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output

Multi-rank scenario (-tp and -gp need to be set to the step level, that is, the upper level of the rank):

msprobe compare -tp /target_dump/step0 -gp /golden_dump/step0 -o ./output

Full Kernel Comparison Across Different Versions

1. Refer to Precision Data Collection in MindSpore to collect MindSpore static graph precision data and obtain the kernel dump data of different framework versions.

2. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump -gp /golden_dump -o ./output --rank 0,1 --step 0,1

In this scenario, only -tp, -gp, -o, --rank, and --step of the compare command are supported.

Cell Comparison Across Different Versions

1. In the config.json file, set level to L0, set task to tensor or statistics, and specify the name of the cell to be dumped.

2. Refer to Precision Data Collection in MindSpore to collect MindSpore dynamic graph precision data and obtain the cell dump data of different framework versions.

3. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output

Cross-Framework API Comparison

1. In the config.json file, set level to L1 and task to tensor or statistics.

2. Refer to Precision Data Collection in MindSpore and Precision Data Collection in PyTorch to collect API precision data in different environments and obtain the API dump data of the two frameworks.

3. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -am

Or

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -am api_mapping.yaml

For details about how to configure the api_mapping.yaml file, see API Mapping. If the api_mapping.yaml file is not passed, the built-in API mapping is used for matching. If the api_mapping.yaml file is passed, the content in the file is preferentially used for matching. For APIs not involved in the api_mapping.yaml file, the built-in API mapping is used for matching.

In addition, you can use the data_mapping.yaml file to match specific parameters. For example:

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -dm data_mapping.yaml

For details about how to write the data_mapping.yaml file, see Data Mapping.

Cross-Framework Cell Comparison

1. In the config.json file, set level to L0 and task to tensor or statistics.

2. Refer to Precision Data Collection in MindSpore and Precision Data Collection in PyTorch to collect cell precision data in different environments and obtain the cell dump data of the two frameworks.

3. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -cm

Or

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -cm cell_mapping.yaml

For details about how to configure the cell_mapping.yaml file, see Cell Mapping. If the cell_mapping.yaml file is not passed, only the cell is changed to the module for matching. If the cell_mapping.yaml file is passed, configurations in the file are used for matching.

In addition, you can use the data_mapping.yaml file to match specific parameters. For example:

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -dm data_mapping.yaml

For details about how to write the data_mapping.yaml file, see Data Mapping.

Cross-Framework Layer Comparison

layer_mapping can simplify configurations by identifying APIs and cells of the entire network from layers.

1. In the config.json file, set level to L0 or mix, set task to tensor or statistics, and specify the name of the API or module to be dumped.

2. Refer to Precision Data Collection in MindSpore and Precision Data Collection in PyTorch to collect API or module precision data in different environments and obtain the API or module dump data of the two frameworks.

3. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -lm layer_mapping.yaml

For details about how to configure the layer_mapping.yaml file, see Layer Mapping.

In addition, you can use the data_mapping.yaml file to match specific parameters. For example:

msprobe compare -tp /target_dump/dump.json -gp /golden_dump/dump.json -o ./output -dm data_mapping.yaml

For details about how to write the data_mapping.yaml file, see Data Mapping.

Data Comparison at L0/Mix Level in Dynamic/Static Graph Scenarios

1. Perform the dump operation by referring to Precision Data Collection in MindSpore.
   In dynamic graph scenarios, when mindspore.jit is used to decorate a specific cell or function, the decorated part will be compiled into a static graph for execution. The following is an example of the directory structure of the collected data files:

   ├── graph
   │   ├── step0
   │   |   ├── rank
   │   |   │   ├── dump_tensor_data
   |   |   |   |    ├── Cell.wrap_net.net.Net.forward.0.input.0.npy
   |   |   |   |    ├── Cell.wrap_net.net.Net.forward.0.output.0.npy
   |   |   |   |    ...
   │   |   |   ├── dump.json
   │   |   |   ├── stack.json
   │   |   |   └── construct.json
   │   ├── ...
   ├── pynative
   │   ├── step0
   │   |   ├── rank
   │   |   │   ├── dump_tensor_data
   |   |   |   |    ├── Cell.dense1.Dense.forward.0.input.0.npy
   |   |   |   |    ├── Cell.dense1.Dense.forward.0.output.0.npy
   |   |   |   |    ...
   │   |   |   ├── dump.json
   │   |   |   ├── stack.json
   │   |   |   └── construct.json
   │   ├── ...


2. Run the following example command to perform the comparison.

msprobe compare -tp /target_dump -gp /golden_dump -o ./output

- `/target_dump` indicates the dump file directory to be compared. In the preceding example, `/target_dump` is the parent directory of the `graph` and `pynative` directories dumped from the side to be compared in dynamic and static graph modes.
- `/golden_dump` indicates the dump file directory on the benchmark side. In the preceding example, `/golden_dump/target_dump` is the parent directory of the `graph` and `pynative` directories dumped from the benchmark side in dynamic and static graph modes.

1. Check data comparison results at L0/Mix level in dynamic/static graph scenarios.

   ├── graph
   │   ├── step0
   │   |   ├── compare_result_rank_20250805043411.xlsx
   ├── pynative
   │   ├── step0
   │   |   ├── compare_result_rank_20250805043414.xlsx


Two folders, graph and pynative, are generated in the output directory, and the comparison results of the corresponding step are generated in each folder.

First Mismatched Operator Node Identification

For details, see First Mismatched Operator Node Identification in Precision Comparison in PyTorch.

Single-Point Data Comparison in Dynamic Graphs

Applicable scenario: compare data saved at a single point in the CPU or NPU environment.

Single-point data comparison supports single-rank and multi-rank comparison. In multi-server scenarios, you need to perform the comparison operation on each device separately.

1. Collect single-point data in dynamic graph scenarios on the CPU and NPU by referring to Single-Point Saving Tool.

2. Example command:

Single-rank scenario:

msprobe compare -tp /target_dump/debug.json -gp /golden_dump/debug.json -o ./output

Multi-rank scenario (-tp and gp need to be set to the step level, that is, the upper level of the rank):

msprobe compare -tp /target_dump/step0 -gp /golden_dump/step0 -o ./output

Output Description

After the comparison is complete, the message msProbe compare ends successfully. is displayed.

Single-rank scenario: An .xlsx file is generated in the configured output path. The file name is automatically generated based on the timestamp in the format of compare_result_{timestamp}.xlsx.

Multi-rank scenario: Multiple .xlsx files are generated in the configured output path. The file name is automatically generated based on the timestamp in the format of compare_result_rank{rank_id}_{timestamp}.xlsx.

Full kernel comparison scenario: An .xlsx file is generated in the configured output path. The file name is automatically generated based on the timestamp in the format of compare_result_{rank_id}_{step_id}_{timestamp}.xlsx.

First mismatched operator node identification scenario: Saving json file to disk: /output_path/compare_result_rank{rank_id}_{timestamp}.json and The analyze result is saved in: /output_path/diff_analyze_{timestamp}.json are displayed when the identification is complete.

Multiple .json files are generated in the configured output path. The file name is automatically generated based on the timestamp in the format of compare_result_rank{rank_id}_{timestamp}.json or diff_analyze_{timestamp}.json.

Single-point data comparison in dynamic graph scenarios: An .xlsx file is generated in the configured output path. The file name is automatically generated based on the timestamp in the format of debug_compare_result_(rank_id/proc_id)_{timestamp}.xlsx.

Output File Description

View comparison results by referring to see Output File Description in Precision Comparison in PyTorch.

Multi-Rank Data Aggregation

Function

This function extracts and summarizes communication operator data from the comparison results in multi-rank comparison scenarios, and outputs a sorted multi-rank precision comparison table for communication operators.

This function is designed for scenarios where precision comparison is complete and multi‑rank precision comparison results are available. However, because communication operator data is distributed across multiple result files, analyzing precision issues becomes difficult. This function aggregates multi‑rank communication operator data, reducing fault localization time.

Precautions

• MD5 comparison results are not supported.
• MindSpore static graph comparison results are not supported.

Syntax

msprobe merge_result -i <input_dir> -o <output_dir> -config <config-path>

Parameters

Parameter	Description	Mandatory (Yes/No)
-i or --input_dir	Directory for storing multi-rank comparison results, that is, the output directory of the comparison results generated by compare. The value is of the string type. All comparison results must be either actual data comparison results or statistical data comparison results; otherwise, the aggregated data may be incomplete.	Yes
-o or --output_dir	Directory for storing the data extraction and aggregation results. The value is of the string type. The file name is automatically generated based on the timestamp in the format of multi_ranks_compare_merge_{timestamp}.xlsx. Note: Files with the same name as the result file in the output directory will be deleted and overwritten.	Yes
-config or --config-path	Path of the YAML file that specifies the APIs whose data needs to be aggregated and comparison metrics. The value is of the string type. For details about the file, see YAML File Description below.	Yes

YAML File Description

The following uses the config.yaml file as an example:

api:
- Distributed.all_reduce
- Distributed.all_gather_into_tensor
compare_index:
- Max diff
- L2norm diff
- MeanRelativeErr

Parameter	Description
api	Name of the API or module whose data is to be aggregated. If this parameter is not set, the tool displays an error message. The API name format is {api_type}.{api_name}.{number_of_api_calls}.{forward/backward}. The preceding four fields must be configured in sequence. You can configure them in the following combinations: {api_type} {api_type}.{api_name} {api_type}.{api_name}.{number_of_api_calls} {api_type}.{api_name}.{number_of_api_calls}.{forward/backward} api here refers to an API or module.
compare_index	Comparison metric to be aggregated. The value of compare_index must be a subset of the comparison metrics corresponding to dump_mode. If this parameter is not set, the tool automatically extracts all comparison metrics corresponding to dump_mode based on the comparison results for aggregation. Comparison metrics in statistics mode: Max diff, Min diff, Mean diff, L2norm diff, MaxRelativeErr, MinRelativeErr, MeanRelativeErr, NormRelativeErr, and Requires_grad Consistent Comparison metrics in real data mode: Cosine, EucDist, MaxAbsErr, MaxRelativeErr, One Thousandth Err Ratio, Five Thousandths Err Ratio, and Requires_grad Consistent

Example

msprobe merge_result -i ./input_dir -o ./output_dir -config ./config.yaml

Output Description

An .xlsx file is generated in the configured output path. The file name is automatically generated based on the timestamp in the format of multi_ranks_compare_merge_{timestamp}.xlsx.

Output File Description

The multi-rank data aggregation result is as follows:

1. NPU Name indicates the name of an API or module.
2. rank* contains multi-rank data.
3. Data of different comparison metrics is displayed on different sheets.
4. If no API or module data is found on a rank, the aggregation result will be blank.
5. If the comparison metric value is N/A, unsupported or NaN, the comparison metric value cannot be calculated. In this case, the aggregation result will be displayed as NPU: NPU Max. value Bench: Bench Max. value.
6. In the example shown in the figure, NPU:N/A Bench:N/A indicates that the output is None.

To view group data based on group information, perform the following steps:

Take Distributed.all_reduce.0.forward as an example. This API performs a multi-rank data reduction operation and outputs the result within a group. The output within the same group is consistent.
In this API, ranks 0 to 3 form a group, which is displayed as tp-0-1-2-3 for Distributed.all_reduce.0.forward.input.group and the output of ranks 0 to 3 is consistent. Ranks 4 to 7 form another group, which is displayed as tp-4-5-6-7, and the output of ranks 4 to 7 is consistent.
In addition to this format, a group can also be presented in the form of [0, 1, 2, 3].

Expected results of common communication APIs:

1. Distributed.all_gather: multi-rank data aggregation. The input of each rank can be different, but the output within the same group is consistent. The output is a tensor list.
2. Distributed.all_gather_into_tensor: multi-rank data aggregation. The input of each rank can be different, but the output within the same group is consistent. The output is a tensor.
3. Distributed.all_reduce: multi-rank data reduction operation. The input of each rank can be different, but the output within the same group is consistent. The output is the reduction result.
4. Distributed.reduce_scatter: multi-rank data reduction operation. The input of each rank can be different, and the output is different parts of the reduction result within the group. The input is a tensor list.
5. Distributed.reduce_scatter_tensor: multi-rank data reduction operation. The input of each rank can be different, and the output is different parts of the reduction result within the group. The input is a tensor.
6. Distributed.broadcast: The input is the data to be broadcast, and the output is the broadcast data.
7. Distributed.isend: point-to-point communication. The input is the data to be sent, and the output is the sent data.
8. Distributed.irecv: point-to-point communication. The input is the original data, and the output is the received new data.
9. Distributed.all_to_all_single: The output data is the result of data splitting and merging on all ranks.

Appendixes

API Mapping

The file name is the format of \*.yaml. The asterisk (*) indicates the file name, which can be customized.

File content format:

ms_api: {ms_api_name}
pt_api: {pt_api_name}
ms_args:
- {index1}
- {index2}
...
- {indexN}
pt_args:
- {index1}
- {index2}
...
- {indexN}
ms_outputs:
- {index1}
- {index2}
...
- {indexN}
pt_outputs:
- {index1}
- {index2}
...
- {indexN}

• ms_api/pt_api: MindSpore or PyTorch API name, in the format of {api_type}.{api_name}. For details about API names, see dump.json in Precision Data Collection in MindSpore and Precision Data Collection in PyTorch.
• ms_args/pt_args: index of the input parameters of the MindSpore and PyTorch APIs corresponding to ms_api or pt_api, respectively.
• ms_outputs/pt_outputs: index of the output parameters of the MindSpore and PyTorch APIs corresponding to ms_api/pt_api, respectively.

Note:

• You can obtain the API mapping between MindSpore and PyTorch from PyTorch and MindSpore API Mapping Table. The following table lists the mapping between the prefixes of PyTorch and MindSpore API names.

PyTorch	PyTorch Name in the Dump File	MindSpore	MindSpore Name in the Dump File
torch.nn.functional	Functional	mindspore.ops	Functional
torch.Tensor	Tensor	mindspore.Tensor	Tensor
torch	Torch	mindspore.ops	Functional

The names in the dump file need to be used when you configure the custom file for API mapping.

• In the custom API mapping file, the number of elements in ms_args must match that in pt_args, and the number of elements in ms_outputs must match that in pt_outputs.

• Ensure that the elements in the custom API mapping file are valid. For example, if the API in ms_args or pt_args uses only three parameters, the specified parameter indexes can only be 0, 1, and 2. In addition, the values in the parameter index list must be unique.

The following is an example of the file content:

ms_api: Functional.abs
pt_api: Torch.abs
ms_args:
- 0
- 1
pt_args:
- 0
- 1
ms_outputs:
- 0
- 1
pt_outputs:
- 0
- 1
# ms_args/pt_args and ms_outputs/pt_outputs must be configured based on the input and output index of ms_api/pt_api. For example, if the input parameter of Functional.abs is (a b c), the corresponding ms_args is 0 1 2, which can be selected as required. If the input parameter of Torch.abs is (ab c), the ms_args and pt_args configurations must be the same. However, if the input parameter of Torch.abs is (a c) or other values that do not completely map to Functional.abs, the index configured for ms_args and pt_args must correspond to the input parameter. The index of Torch.abs (a c) is 0 1, and that of Functional.abs (a b c) is 0 1 2. As only the a and c parameters can be mapped, set ms_args to 0 2 and pt_args to 0 1. The same rule applies to ms_outputs/pt_outputs.

Cell Mapping

The file name is the format of \*.yaml. The asterisk (*) indicates the file name, which can be customized.

The content of the mapping file can be defined in two formats: mapping by cell name and mapping by string in the cell name.
The two formats can be configured in the same file. If both formats are configured for the same cell, mapping by cell name is used.

Mapping by Cell Name

Extract {cell_name}.{class_name} from the cell name for mapping. Example:

{cell_name}.{class_name}: {module_name}.{class_name}

{cell_name}.{class_name} represents a cell in the MindSpore framework, and {module_name}.{class_name} represents a module in the PyTorch framework.

• Obtain {cell_name}.{class_name} from the name of the cell-level dump file (.npy). The naming format is:
  Cell.{cell_name}.{class_name}.{forward/backward}.{index}.{input/output}.{parameter_index/parameter_name}
  Or
  Cell.{cell_name}.{class_name}.parameters_grad.{parameter_name}

• Obtain {module_name}.{class_name} from the name of the module-level dump file (.npy). The naming format is:
  Module.{module_name}.{class_name}.{forward/backward}.{index}.{input/output}.{parameter_index/parameter_name}
  Or
  Module.{module_name}.{class_name}.parameters_grad.{parameter_name}

The following is an example of the file content:

fc2.Dense: fc2.Linear
conv1.Conv2d: conv3.Conv2d

Mapping by String in the Cell Name

Extract any string from {cell_name}.{class_name} in the cell name for mapping. Example:

{target_str1}: {golden_str1}
{target_str2}: {golden_str2}

The following is an example of the file content:

MindSpeedTELayerNormColumnParallelLinear: TELayerNormColumnParallelLinear
RowParallelLinear: TERowParallelLinear

Only the first string in {cell_name}.{class_name} is mapped.

Data Mapping

The file name is the format of \*.yaml. The asterisk (*) indicates the file name, which can be customized.

File content format:

# API
{api_type}.{api_name}.{number_of_api_calls}.{forward/backward}.{input/output}.{parameter_index/parameter_name}: {api_type}.{api_name}.{number_of_api_calls}.{forward/backward}.{input/output}.{parameter_index/parameter_name}
# Module
{Cell}.{cell_name}.{class_name}.{forward/backward}.{index}.{input/output}.{parameter_index/parameter_name}: {Module}.{module_name}.{class_name}.{forward/backward}.{index}.{input/output}.{parameter_index/parameter_name}
Or
{Cell}.{cell_name}.{class_name}.parameters_grad.{parameter_name}: {Module}.{module_name}.{class_name}.parameters_grad.{parameter_name}

The left side of the colon (:) is the name of the MindSpore API and cell, and the right side of the colon (:) is the name of the PyTorch API and module.

For details about API and module names, see dump.json in Precision Data Collection in MindSpore and Precision Data Collection in PyTorch.

The following is an example of the file content:

# API
Functional.flash_attention_score.4.forward.input.0: NPU.npu_fusion_attention.4.forward.input.0
# Module
Cell.relu.ReLU.forward.0.input.0: Module.module.language_model.embedding.word_embedding.VocabParallelEmbedding.forward.0.input.0
Or
Cell.relu.ReLU.parameters_grad.weight: Module.module.language_model.embedding.word_embedding.VocabParallelEmbedding.parameters_grad.weight

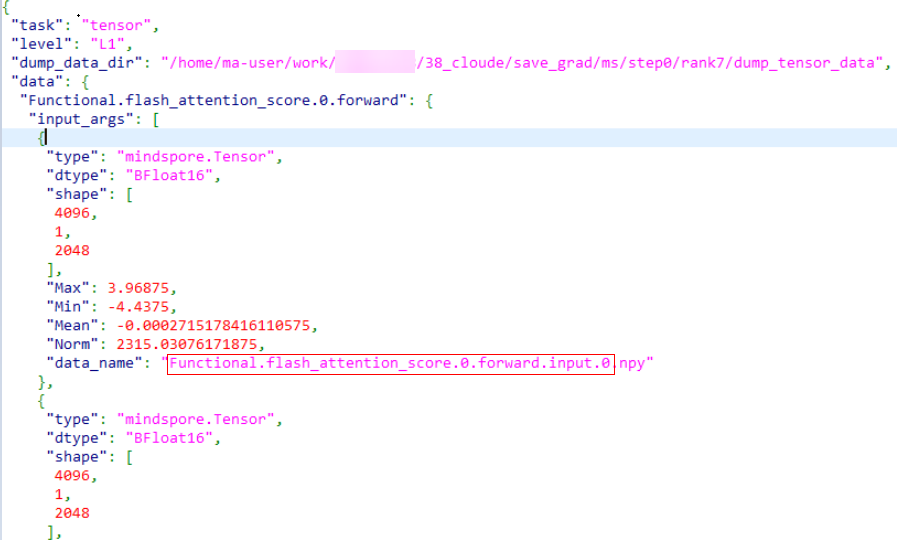

If the dump.json file contains the data_name field, the API and module names are the data_name field with the file name extension removed, as shown in the red box in the following figures.

• MindSpore dump

• PyTorch dump

If the dump.json file does not contain the data_name field, the naming rules are as follows:

The naming rules for input_args, input_kwargs, and output are the same. If the value is of the list type, add .{index} to the end of the name. If the value is of the dict type, add .{key} to the end of the name. If the value is a specific tensor, null, or an empty list/dict, the naming ends.

The following uses the cell dump file as an example:

"Cell.network.module.NetworkWithLoss.forward.0": {
  "input_args": [
    {
      "type": "mindspore.Tensor",
      "dtype": "Float32",
      "shape": [
        24,
        16,
        1,
        60,
        34
      ],
      "Max": 3.591925621032715,
      "Min": -3.6856653690338135,
      "Mean": -0.017044123262166977,
      "Norm": 940.671630859375,
      "md5": "00d69ba8"
    },
    {
      "y": {
        "type": "mindspore.Tensor",
        "dtype": "Float32",
        "shape": [
          24,
          1,
          100,
          4096
        ],
        "Max": 2.433350086212158,
        "Min": -4.09375,
        "Mean": -0.00010696164099499583,
        "Norm": 170.3390655517578,
        "md5": "a72e1fa4"
      },
      "y_mask": {
        "type": "mindspore.Tensor",
        "dtype": "Float32",
        "shape": [
          24,
          100
        ],
        "Max": 1.0,
        "Min": 0.0,
        "Mean": 0.22999998927116394,
        "Norm": 23.494680404663086,
        "md5": "bbcbd5ab"
      },
      "x_mask": {
        "type": "mindspore.Tensor",
        "dtype": "Float32",
        "shape": [
          24,
          510
        ],
        "Max": 1.0,
        "Min": 1.0,
        "Mean": 1.0,
        "Norm": 110.63453674316406,
        "md5": "766d1028"
      },
      "loss_mask": {
        "type": "mindspore.Tensor",
        "dtype": "Float32",
        "shape": [
          24,
          1,
          60,
          34
        ],
        "Max": 1.0,
        "Min": 1.0,
        "Mean": 1.0,
        "Norm": 221.26907348632812,
        "md5": "0cb690ce"
      },
      "data_info": {
        "img_hw": null
      }
    }
  ],
"input_kwargs": {},
"output": [
{
"type": "mindspore.Tensor",
"dtype": "Float32",
"shape": [],
"Max": 0.3672327995300293,
"Min": 0.3672327995300293,
"Mean": 0.3672327995300293,
"Norm": 0.3672327995300293,
"md5": "28f8f74f"
}
]
}

The initial name is Cell.network.module.NetworkWithLoss.forward.0, input_args is a list of length 2. According to the naming rules, the following names can be obtained:

Cell.network.module.NetworkWithLoss.forward.0.input.0
Cell.network.module.NetworkWithLoss.forward.0.input.1

The 0th item is followed by Tensor, and the naming ends. The 1st item is followed by dict. The keys include y, y_mask, x_mask, and data_info. According to the naming rules, the following names can be obtained:

Cell.network.module.NetworkWithLoss.forward.0.input.1.y
Cell.network.module.NetworkWithLoss.forward.0.input.1.y_mask
Cell.network.module.NetworkWithLoss.forward.0.input.1.x_mask
Cell.network.module.NetworkWithLoss.forward.0.input.1.data_info

y is followed by Tensor, and the naming ends. y_mask is followed by Tensor, and the naming ends. x_mask is followed by Tensor, and the naming ends. data_info is followed by dict, the key is followed by img_hw, and the following name can be obtained:

Cell.network.module.NetworkWithLoss.forward.0.input.1.data_info.img_hw

img_hw is followed by null, and the naming ends.

input_kwargs is a dict with a length of 0, and the naming ends. output is a list with a length of 1, and is named as follows:

Cell.network.module.NetworkWithLoss.forward.0.output.0

The 0th item is followed by Tensor, and the naming ends.

In conclusion, the generated op_name is:

Cell.network.module.NetworkWithLoss.forward.0.input.0
Cell.network.module.NetworkWithLoss.forward.0.input.1.y
Cell.network.module.NetworkWithLoss.forward.0.input.1.y_mask
Cell.network.module.NetworkWithLoss.forward.0.input.1.x_mask
Cell.network.module.NetworkWithLoss.forward.0.input.1.data_info.img_hw
Cell.network.module.NetworkWithLoss.forward.0.output.0

Layer Mapping

The file name is the format of \*.yaml. The asterisk (*) indicates the file name, which can be customized.

The following is an example of the file content:

ParallelAttention:                 # Layer name
  qkv_proj: query_key_value        # The content on the left of the colon (:) is the name of the layer nested in the MindSpore model code, and the content on the right of the colon (:) is the name of the layer nested in the PyTorch model code.
  out_proj: dense

ParallelTransformerLayer:
  attention: self_attention

Embedding:
  dropout: embedding_dropout

ParallelMLP:
  mapping: dense_h_to_4h
  projection: dense_4h_to_h

PipelineCell:
  model: module

Cell:
  network_with_loss: module

The layer name needs to be obtained from the model code.

In the YAML file, you only need to configure the layers that have the same functions but different names in the MindSpore and PyTorch model code. Layers with the same names will be automatically identified and mapped.

Model code example:
